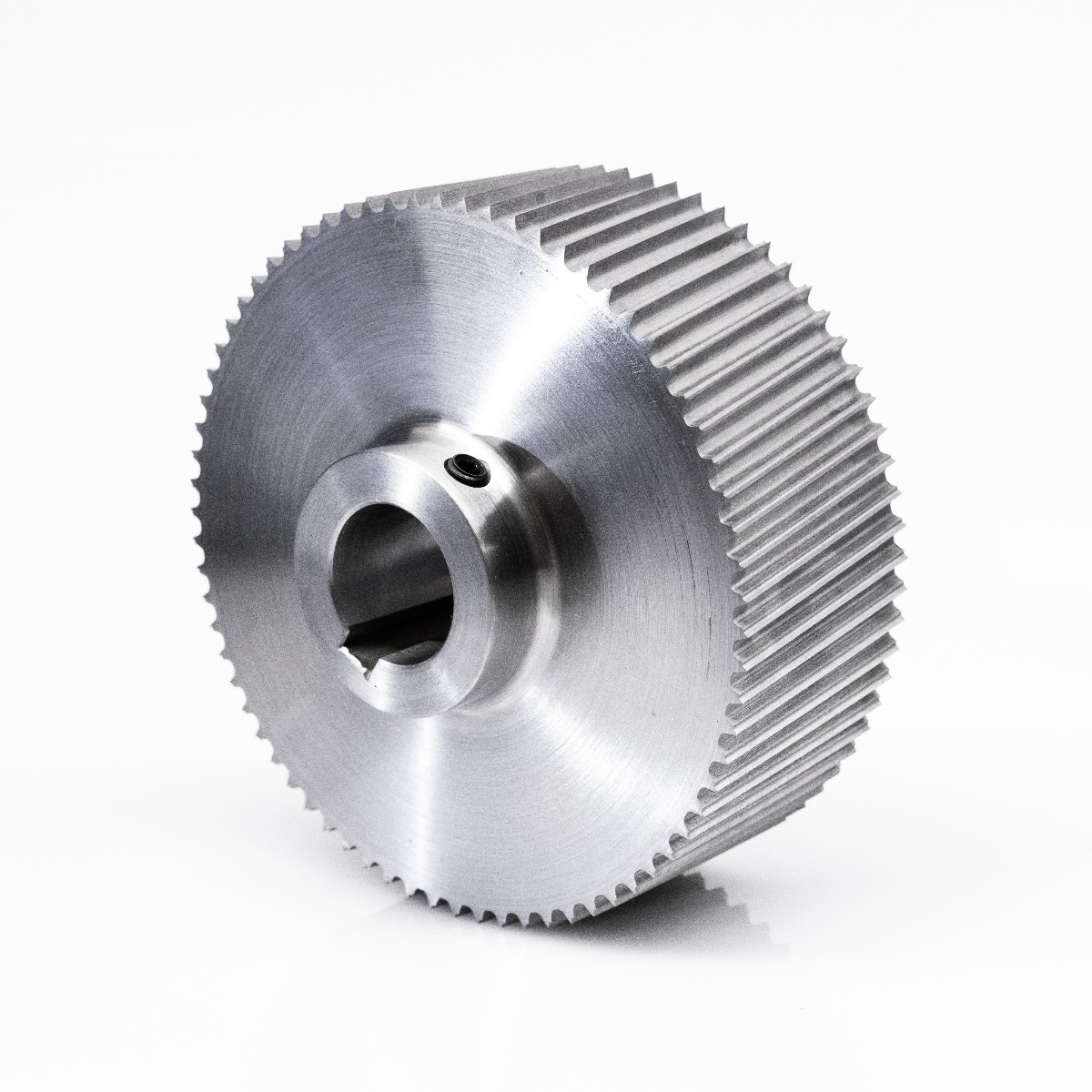

The steel roller is made of hardened steel, which can be chrome-plated for added strength upon request.
When ordering steel rollers, the customer must select the following:
the tooth profile (A, B, C, D, E, F, G, H, X – if you select tooth profile X, do not choose the tooth direction or material, as it is only available chrome-plated)
the tooth direction (straight or helical)
the material (standard – hardened only, chrome-plated – hardened + chrome-plated)
These steel rollers are suitable for installation in various Gubisch machines.

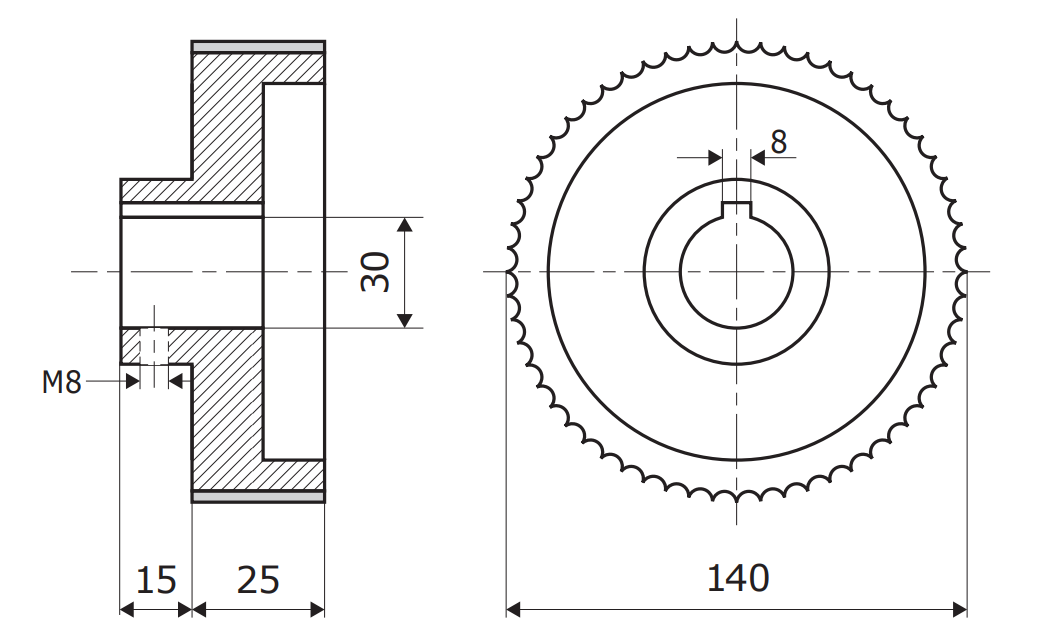

Technical Data (in mm):
D (Core Diameter) = 140
D1 (Roller Diameter) = 140
L (Core Length) = 40
L1 (Tooth Width) = 25
Č (Bore) = 30
U (Keyway) = 8
