In stock

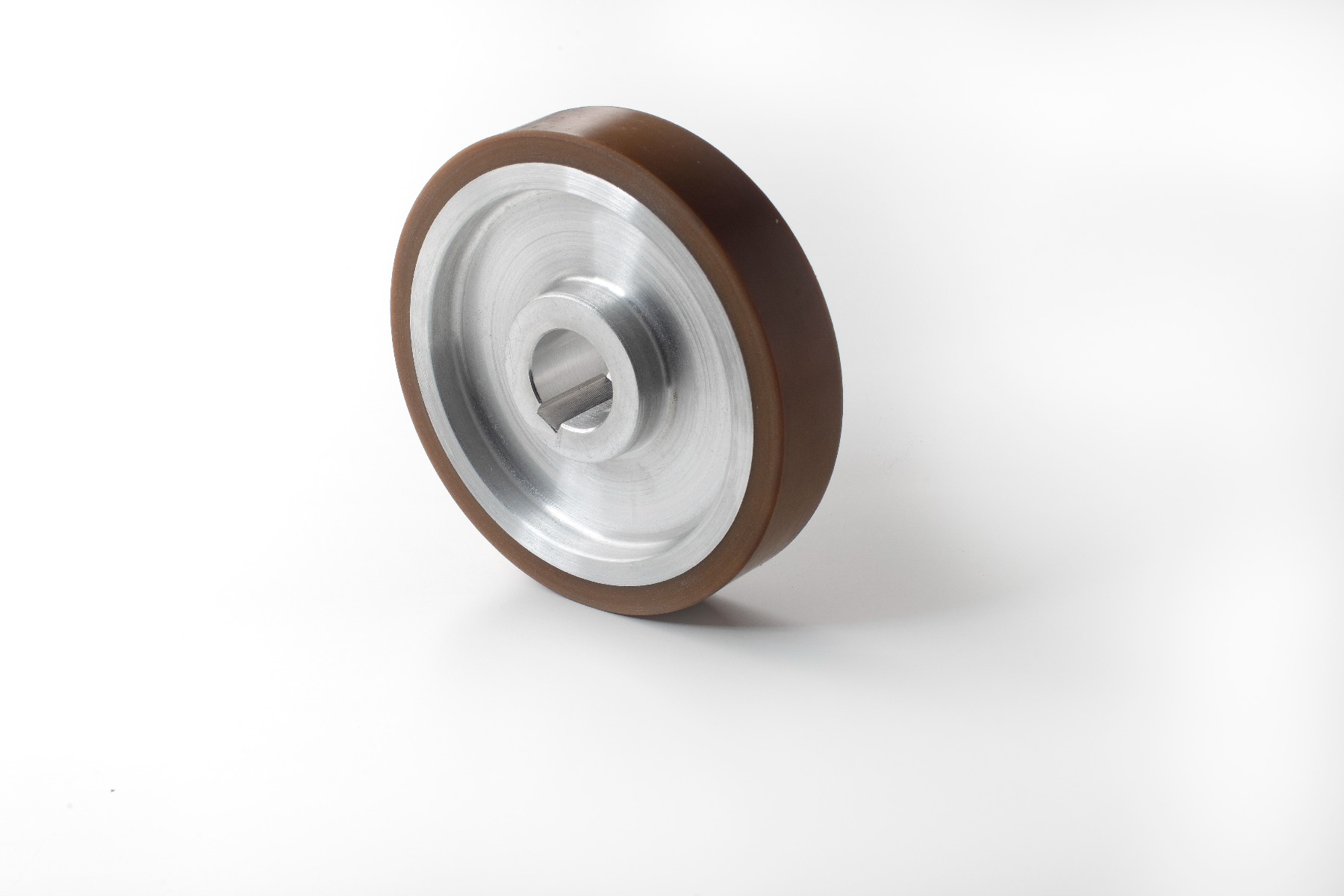

The roller has an aluminium core and is coated with a brown rubber compound of 70±5 ShA.
The rubber provides very good grip, leaves no marks, and is abrasion-resistant.
This roller is suitable for installation in various Weinig four-sided planing machines.
Upon request, we can coat it with a different rubber compound (send us an inquiry).
There is also the option to recoat your old roller, which is a more cost-effective solution (send us an inquiry).

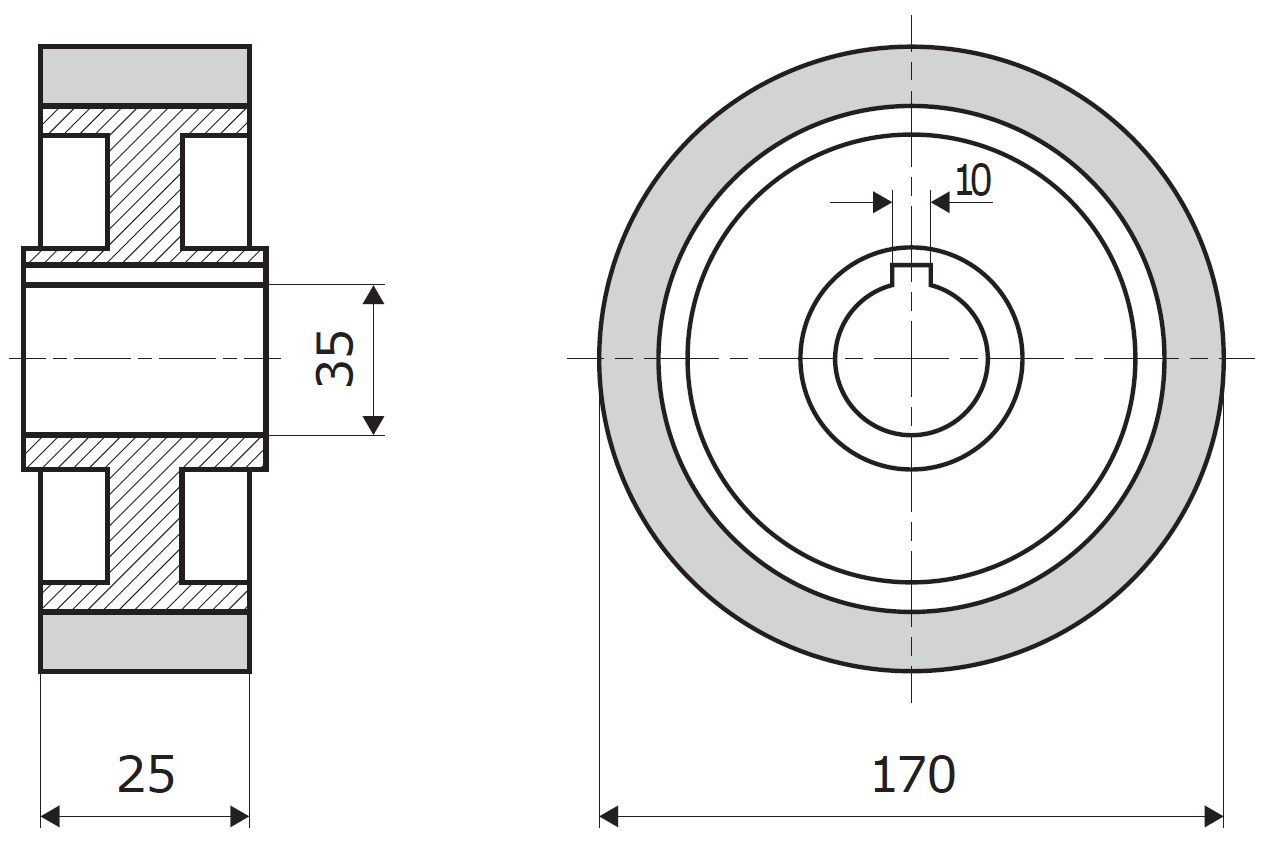

Technical data (in mm):
D (kernel diameter) = 150
D1 (diameter of roller) = 170
L (kernel length) = 28
L1 (rubber length) = 25
Č (bore) = 35
U (keyway) = 10
TK (fixing screw hole centers) =
