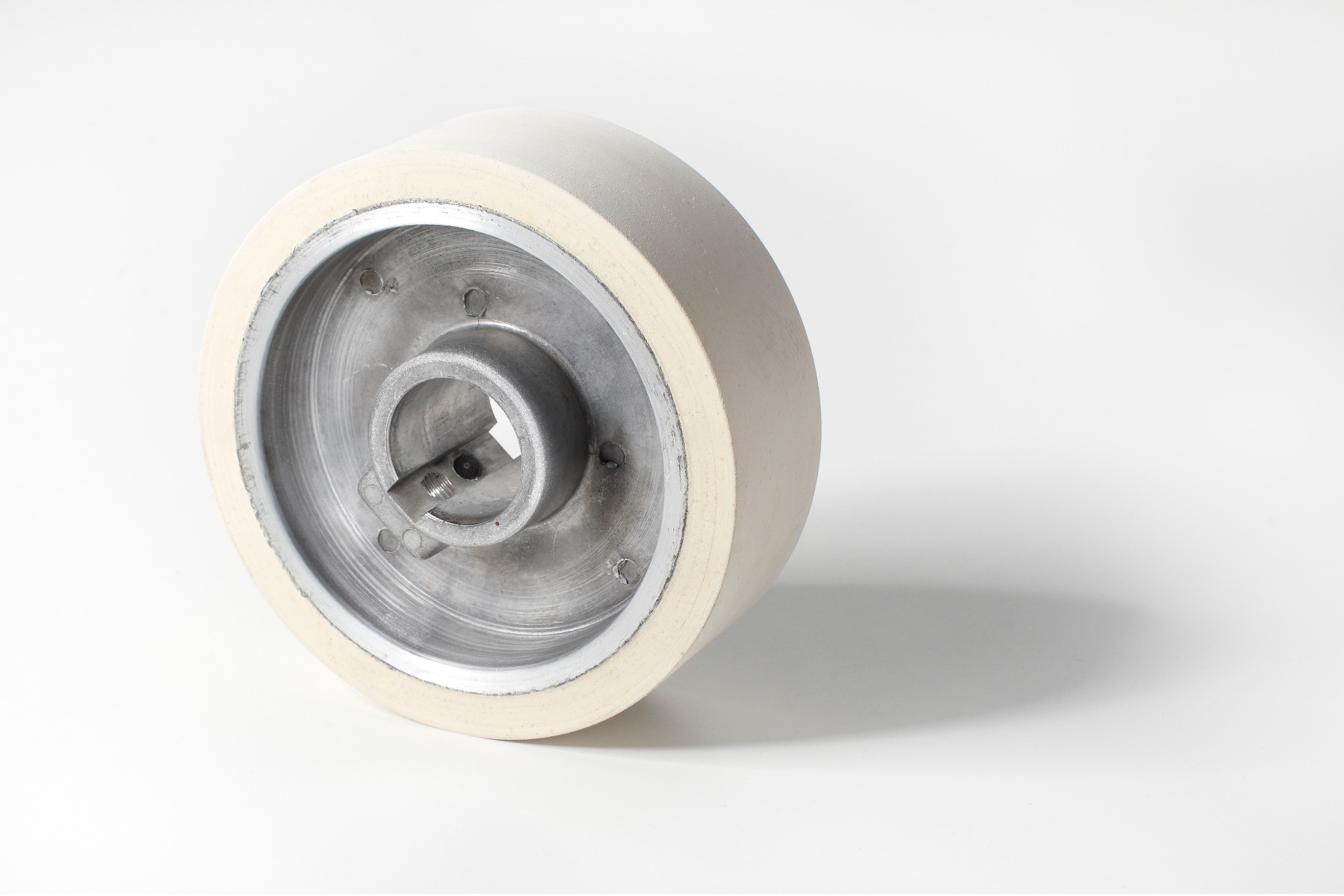

The roller has an aluminium core and is coated with a white rubber compound of 60±5 ShA. The rubber provides very good grip and leaves no traces on the wood.
Weinig rollers are suitable for installation in various Weinig machines. Upon request, we can coat the roller with a different rubber compound (send us an inquiry).
There is also the option to recoat your old roller, which is a more cost-effective solution (send us an inquiry).

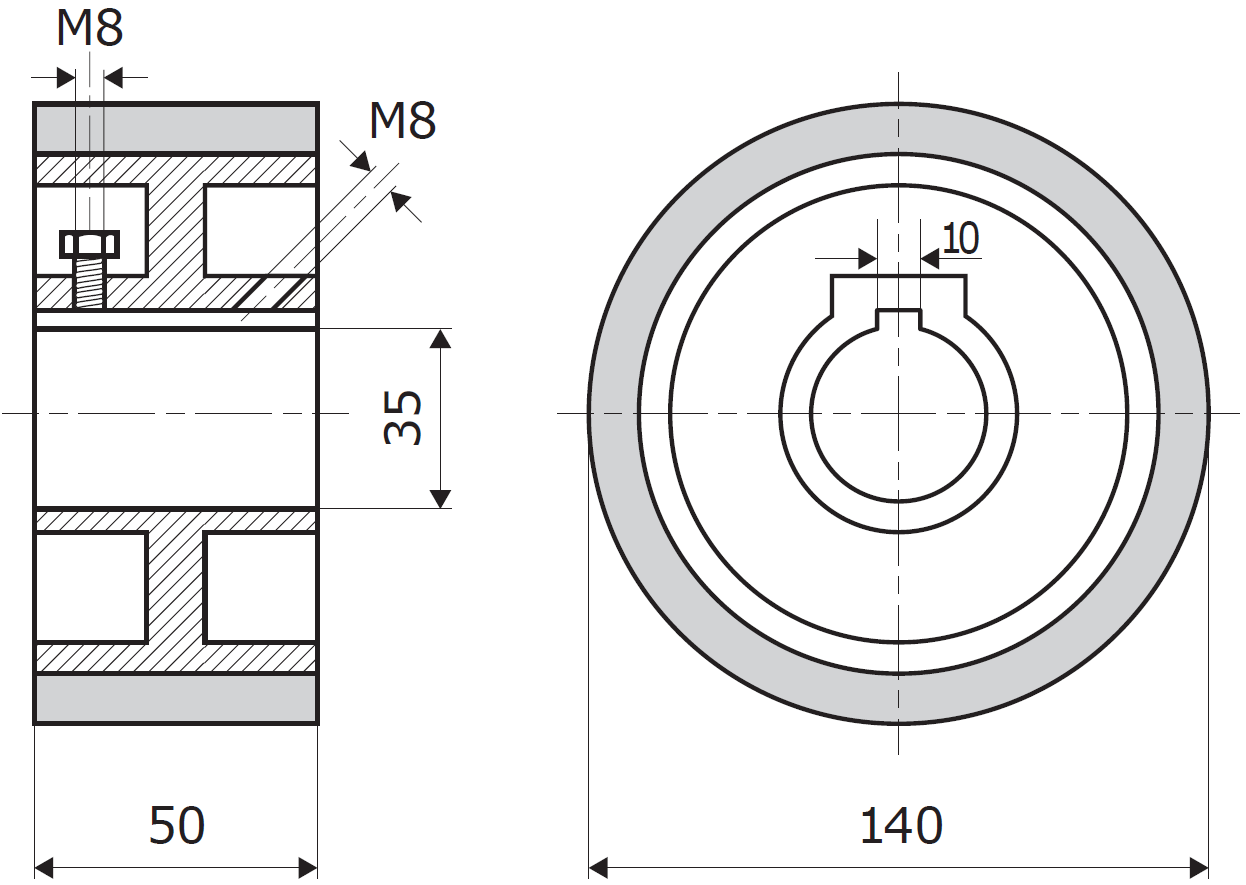

Technical data (in mm):
D (kernel diameter) = 120
D1 (diameter of roller) = 140
L (kernel length) = 50
L1 (rubber length) = 50
Č (bore) = 35
U (keyway) = 10
TK (fixing screw hole centers) =
