In stock
The roller has a steel kernel with a bearing seat (without bearing, without retaining ring) and is rubberized with a softer red silicone compound of 50±5 ShA. The silicone is heat-resistant (up to 200°C under longer exposure, up to 220°C under shorter exposure). The roller is suitable for installation in various machines.
Upon request, we can rubberize the roller with a different rubber compound (send us an inquiry).

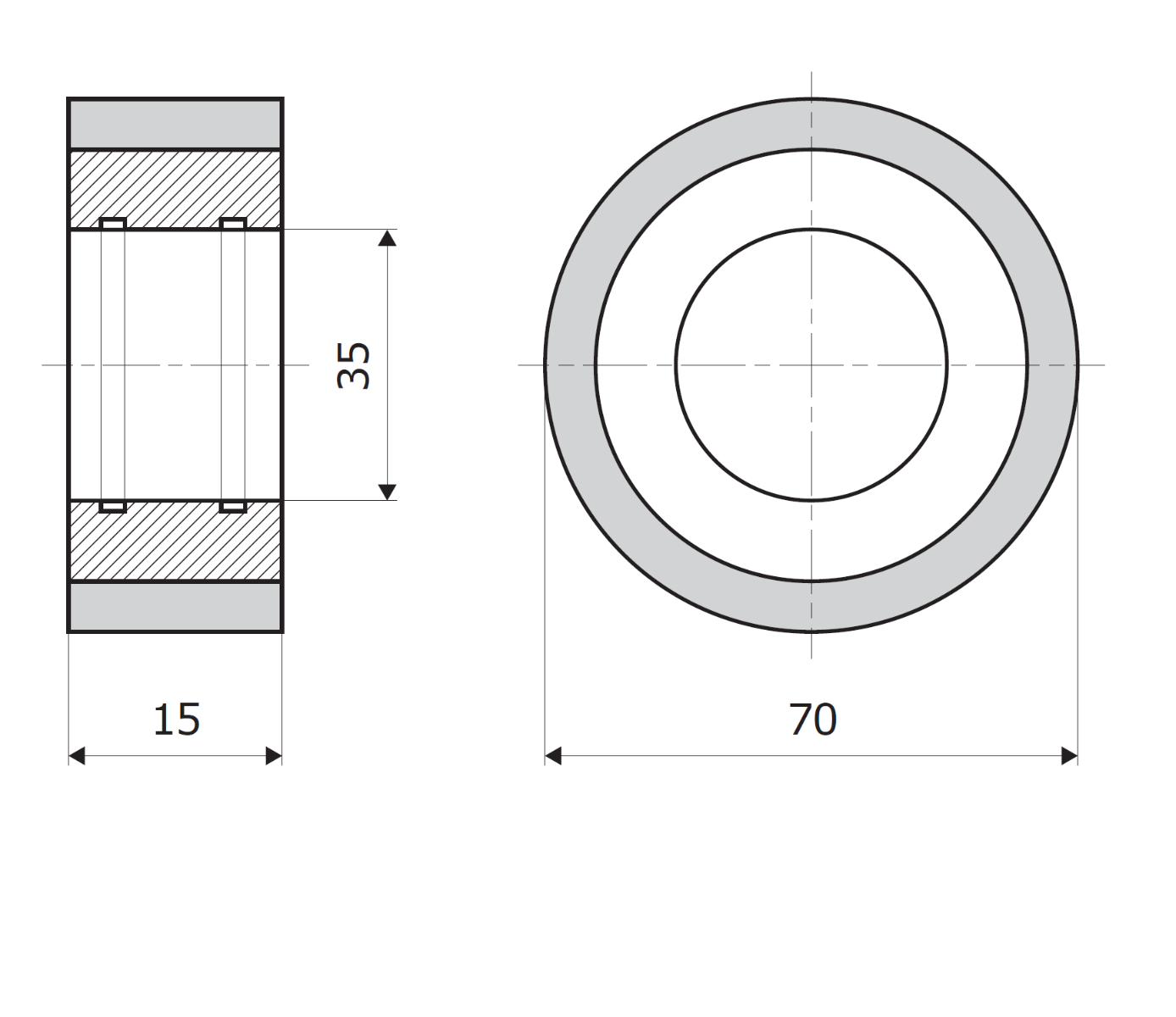

Technical data (in mm):
D (kernel diameter) = 50
D1 (final diameter with rubber) = 70
L (kernel length) = 15
L1 (rubber length) = 15
Č (bore) = 35
U (keyway width) =
TK (fixing screw hole centers) =
