In stock
The roller has an aluminum core with a hexagonal bore and is coated with a white rubber compound of 60±5 ShA. The rubber offers excellent grip, leaves no marks, and is abrasion-resistant.
The roller is suitable for installation in various Panhans machines. 90-125 mm Panhans rollers with a black rubber compound of 70±5 ShA are also available as standard.

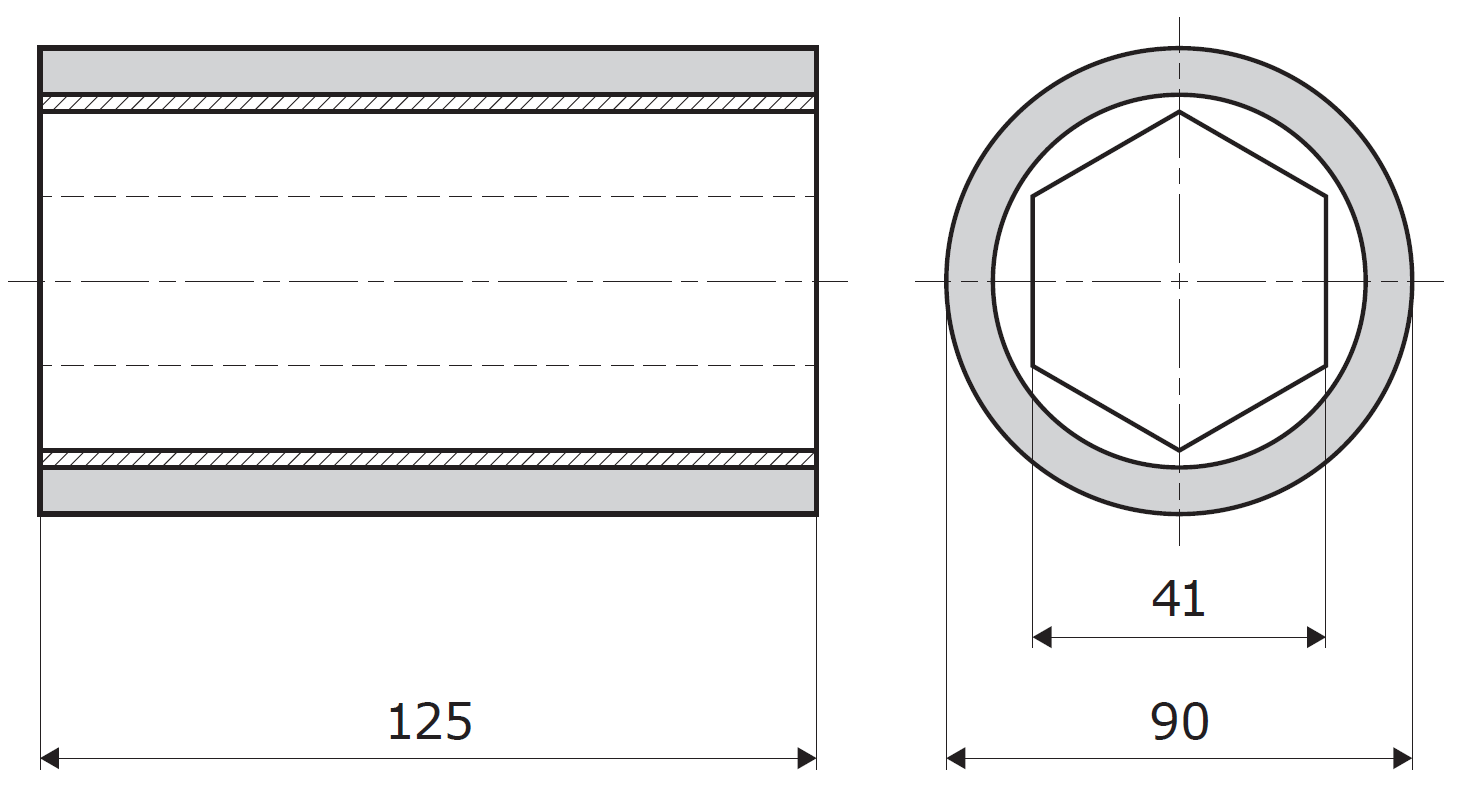

Technical Data (in mm):
D (Kernel diameter) = 53,5
D1 (Roller diameter) = 90
L (Kernel width) = 125
L1 (Roller width) = 125
Č (Hole) = 41
U (Keyway width) =
TK (Fixing screw hole centers diameter) =
