In stock

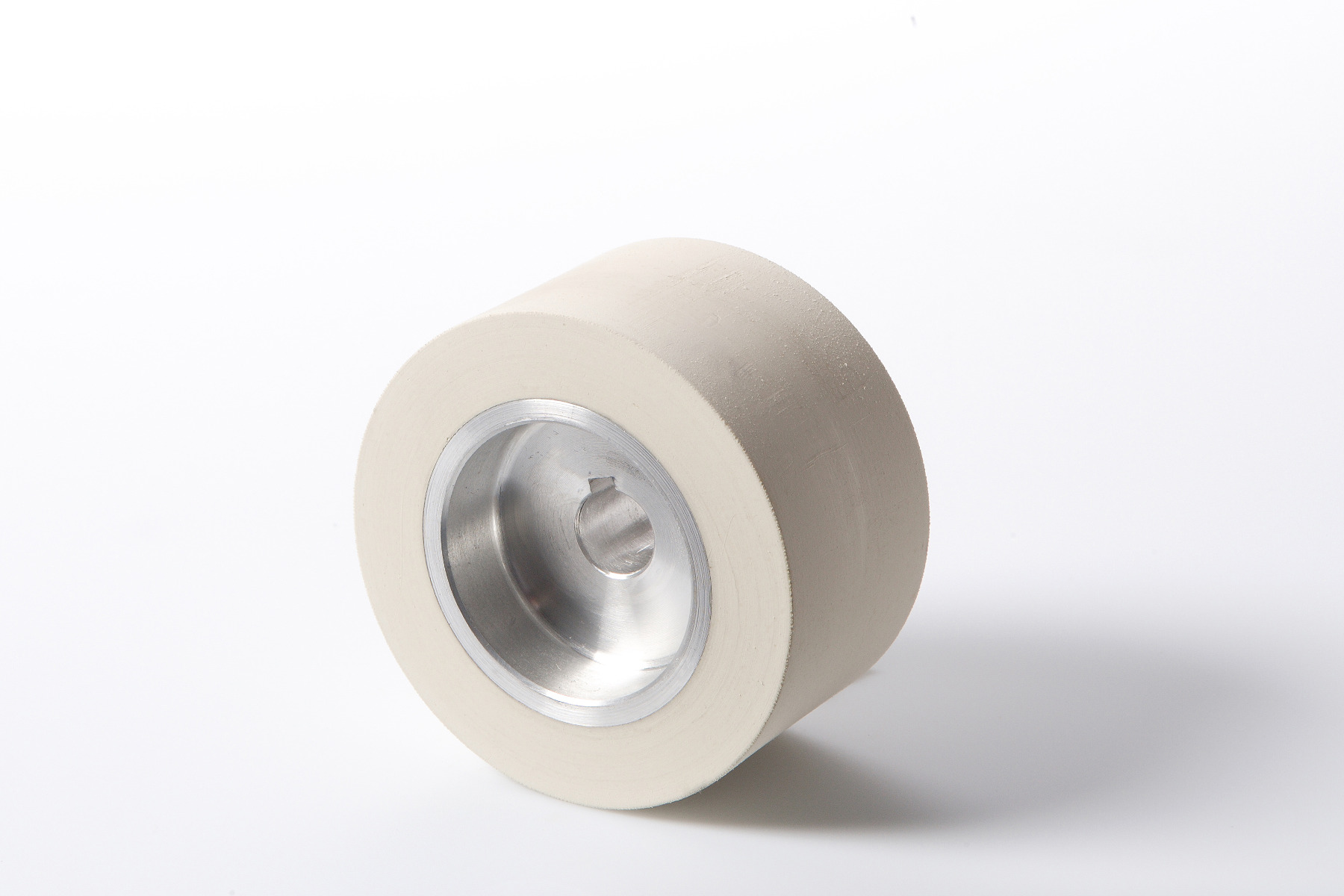

The feed roller has an aluminum core and is coated with a white rubber compound with a hardness of 60±5 ShA. The rubber offers excellent grip, leaves no marks, and is abrasion-resistant.
As standard, Festo rollers are available in three different widths: 33 mm, 40 mm, and 50 mm.
The roller is suitable for installation in various Festo machines. We can also coat it with a different rubber compound upon request (please send us an inquiry).
Re-rubberizing the roller is also an option, which is a more economical solution (please send us an inquiry).

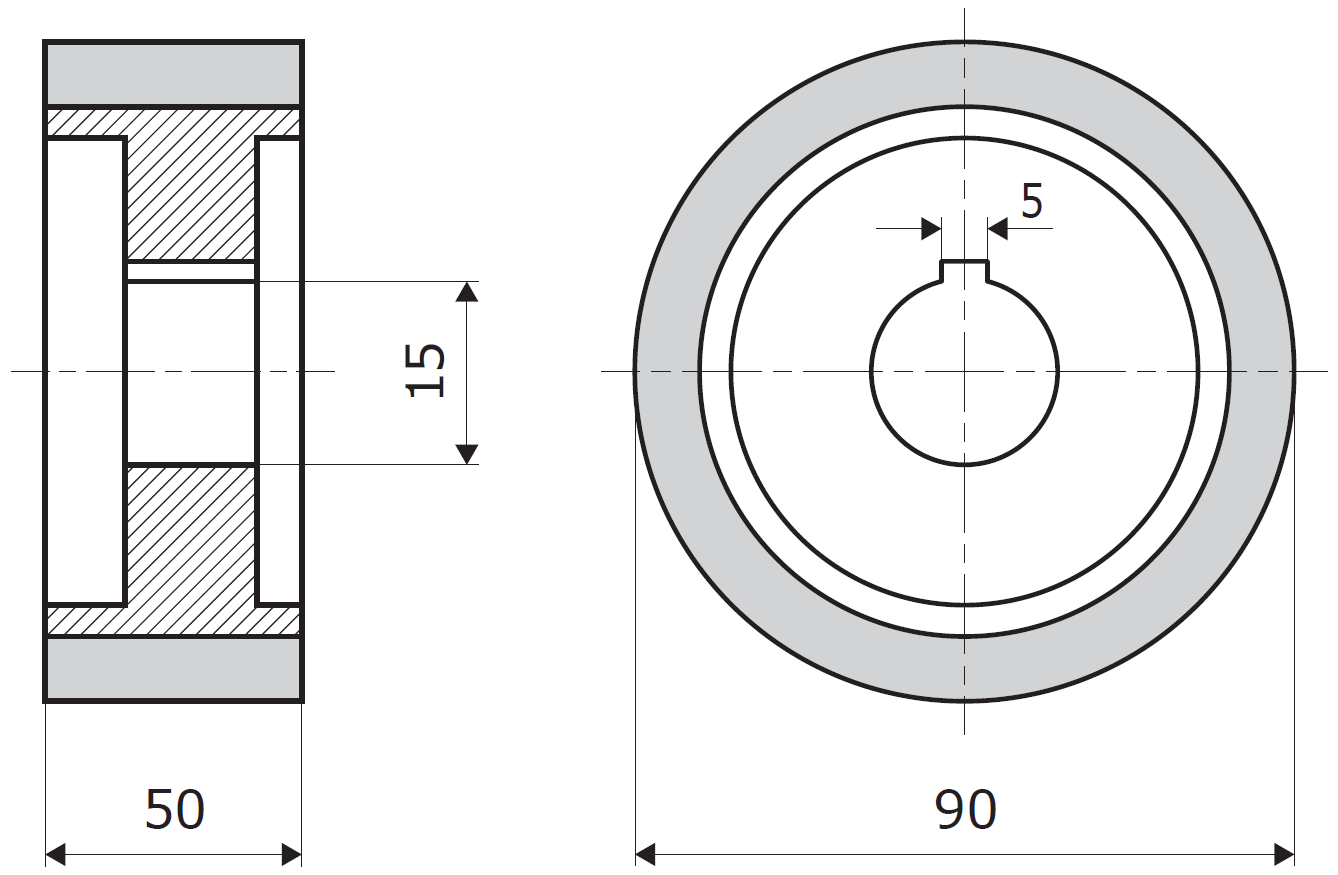

Technical Data (in mm):
D (Kernel diameter) = 60
D1 (Roller diameter) = 90
L (Kernel width) = 50
L1 (Roller width) = 50
Č (Hole) = 15
U (Keyway width) = 5
TK (Fixing screw hole centers diameter) =
