In stock
The feed roller has an asymmetrical aluminum core and is coated with a soft, white rubber compound of 50±5 Shore A. The rubber provides excellent grip and leaves no marks on the wood.
The rollers are suitable for installation in various feed mechanisms. We can also coat the rollers with a different rubber compound upon request (please send us an inquiry).

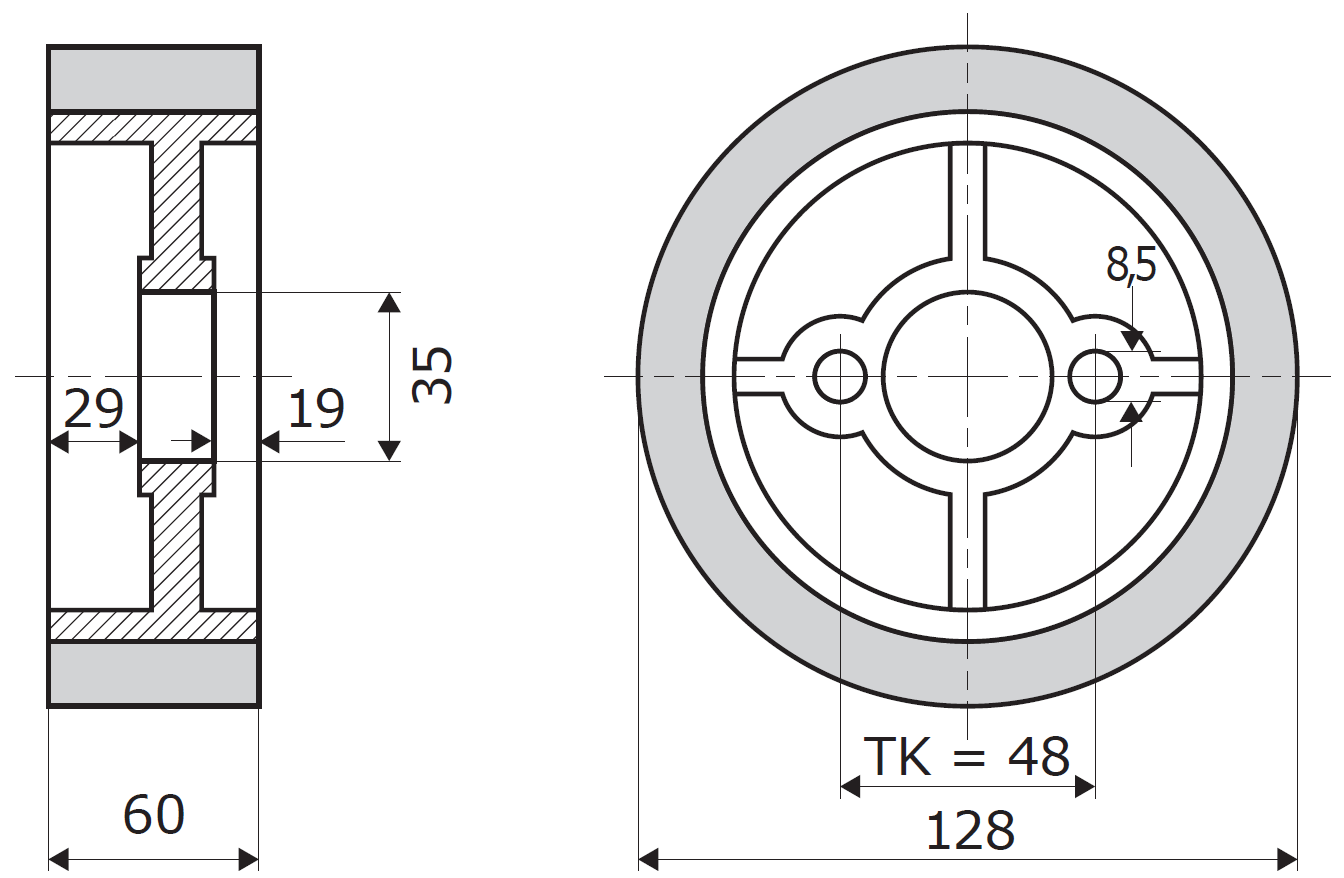

The core is asymmetrical – please refer to the diagram.
Technical Data (in mm):
D (Kernel diameter) = 82
D1 (Roller diameter) = 128
L (Kernel width) = 60
L1 (Roller width) = 60
Č (Hole) = 35
U (Keyway width) =
TK (fixing screw hole centers diameter) = 48
